Paste Packaging Machine Shampoo Filling Machine Liquid Pouch Packing Machine
Machine Specification:
| Item | ZC-X8200 | ZC-X8250 | ZC-X8300 |
| Packing speed | MAX 60 bags/min,depending on the quality of the packaging film,packaging materials packaging weight etc. |
| Bag size | (L)100-300mm (W)70-200mm | (L)100-350mm (W)130-250mm | (L)150-450mm (W)200-300mm |
| Bag type | Pre-mede bags,Stand-up bag,four-side sealed bag,three-side sealed bag,special-shaped bag |
| Weighing range | 10g-1kg | 10g-2kg | 10g-3kg |
| Measurement accuracy | *≤±0.5~1%, depending on the measuring equipment & materials. |
| Maximum bag width | 200mm | 250mm | 300mm |
| Gas consumption | 0.8Mpa 0.3m3/min (Supply by user) |
| Total Powder/Voltage | 1.5KW 380V 50/60Hz | 1.8KW 380V 50/60Hz | 2KW 380V 50/60Hz |
| Air compressor | Not less than 1CBM |
| Dimension | L1900*W1400*H1450 | L1900*W1400*H1450 | L2000*W1500*H1550 |
| Machine Weight | 1300kg | 1300kg | 1500kg |

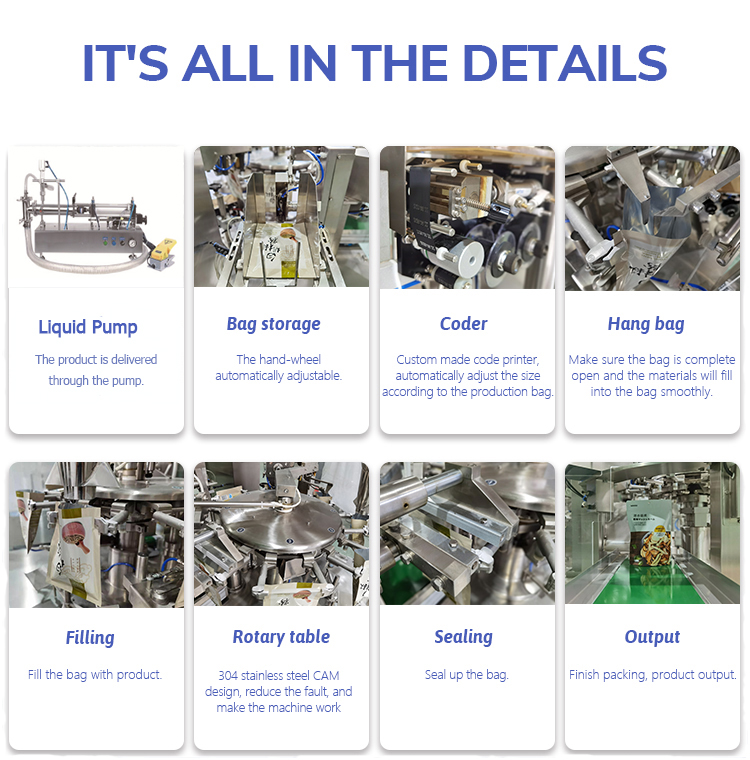

| Work flow | Giving bag→Coding→Opening bag(or Open zipper bag)→Filling→ Auxiliary→Exhaust→Heat sealing→Forming and output products. |
| Applicable scope | Liquid/paste type: Oil,milk,detergent liquid, rice wine, soy sauce, rice vinegar, fruit juice, beverage, tomato sauce, peanut butter, jam, chili sauce, bean paste, etc |
(We can provide you with exclusive packaging machine customization services according to your needs! Of course,If you need, we can also provide you with customized bag service)
Exquisite packaging will also increase the "value" of a product. In our daily shopping, we usually choose products with good-looking packaging. The bag-feeding packaging machine is packaged by fully automatic packaging of the products to be packaged into designed prefabricated bags. The liquid feeding bag packaging machine can integrate the processes of bag taking - coding - opening bag - metering and blanking - dust removal - cleaning - heat sealing - cold sealing - output, etc., which can efficiently and quickly adapt to the needs of the consumer market for many production enterprises. Quickly occupy the consumer market.
Features and performance
A. Quickly change the specifications of the packaging bags, and the bag width can be adjusted automatically with one key.
B. Single shaft transmission and internal cam design, fast packaging, more stable operation, easier maintenance, and less defective products.
C. Modular heating, more accurate temperature control, and alarm prompts for heating failures.
D. The advanced design concept reduces the loss of packaging materials, ensures the stability of equipment operation, and prolongs the operating life of the equipment.
E. The operation is simple and convenient, using advanced PLC+POD (touch screen) electrical control system and friendly man-machine interface.
F. The machine has a wide range of packaging, which can pack liquid, sauce, granule, powder, solid and various bagable materials. It is only necessary to use different metering devices according to different materials.
G. This machine uses prefabricated packaging bags with perfect packaging patterns and good sealing quality, thus improving the quality and grade of the products.
